Powder Metal Manufacturing of a Magnet Hub for a DC Motor Application

Powder Metal Manufacturing of a Magnet Hub for a DC Motor Application
[click to enlarge]
Powder Metal Manufacturing of a Magnet Hub for a DC Motor Application

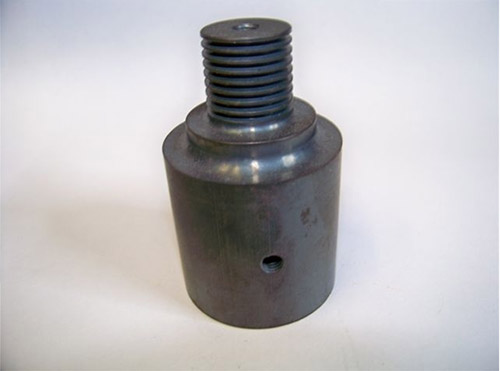

At Ridgway Powdered Metals Inc., we specialize in developing powdered metal manufacturing solutions to needs that are poorly met by more traditional fabrication methods. This magnet hub is used on a DC motor, and is composed of FY-4500-20V, a powdered iron-phosphorous magnetic alloy specifically designed for DC applications. The hub has an outer diameter of 2.360” and a height of 1.740”, and is held to dimensional tolerances of ±0.003. It also features a counter bore depth of 1.600”. This type of feature is very difficult to achieve while maintaining such a uniform thin wall thickness using traditional manufacturing methods.

Our engineering department developed the tooling and processes required to produce this custom hub completely in-house. The powder is compressed on our 550 ton multilevel compacting press and sintered in our tightly controlled sintering furnace. Resin impregnation is used to further reduce porosity, the finished hub is then zinc plated. We produce approximately 1,000 of these hubs per month and maintain a Kanban system for our customer. Once a Kanban is released, the customer receives the parts in two days. For more information about this powdered metal manufacturing project, see the table below, or contact us directly.

Request Quote

Highlights of this Powdered Metal Manufacturing Project

Product Description
Magnet Hub
Capabilities Applied/Processes
  • Tool Making
  • Process Sourcing
Resin Impregnate
Zinc Plate
Equipment Used to Manufacture Part
550 ton Multi-Level Press
  • Three Lower Punches and One Upper Punch.
Overall Part Dimensions
Outside Diameter: Ø 2.370”
Depth/Height: 1.740”, C’Bore Depth: 1.600” Internal Hub.
Weight: 360 grams
Tightest Tolerances
± 0.003”
Material Used
Material Finish
Zinc Plate, Clear Sealant
In process testing/inspection performed
Dimensional Inspection, Gage Inspection
Visual Inspection for Plating.
Industry for Use
DC Motors
12,000 +
Delivery/Turnaround Time
Up to 1,000 per Month, Kanban Releases, Two Day Delivery
Delivery Location
Standards Met
Customer Specifications, 2D CAD Drawing
Product Name
Magnet Hub
